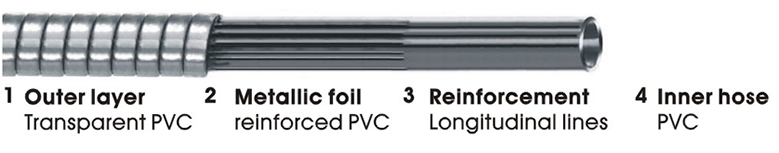

Out jacket: Stainless steel or brass;
Single-lock or double-lock;
Dimension(ID/OD): 7MM / 14MM; 7.5MM / 14MM
Inner hose: PVC(NSF, WRAS, KTW, ACS, UPC, CSA, WATERMARK)
EPDM(WRAS, ACS, WATERMARK)
Working pressure: 0 – 5 bar
Working temperature: ≤ 70℃
Tensile strength: ≥ 500N
Flow rate: ≥ 25.2L/Min at 3 bar
Thermal shock test: 300 cycles with flow rate of 6L/Min (EN1113)
Life cycle test: 10,000 cycles under the force of 67N (ASME A112.18.1/
CSA B125.1)
5,000 cycles under the force of 5N ( EN1113)
Approval: EN1113, WRAS, ACS
This hose can be customized to meet CSA, UPC, KTW-C,W270,WATERMARK and other international certifications.
|
