Out jacket: Stainless steel or brass;
Double-lock;
Dimension(ID/OD): 10MM / 16MM; 11MM / 16MM; 11MM / 17MM
Inner hose: PVC(NSF, WRAS, KTW, ACS, UPC, CSA, WATERMARK)
EPDM(WRAS, ACS, WATERMARK)
Working pressure: 0 – 5 bar
Working temperature: ≤ 70℃
Tensile strength: ≥ 500N
Flow rate: ≥ 25.2L/Min at 3 bar
Thermal shock test: 300 cycles with flow rate of 6L/Min (EN1113)
Life cycle test: 10,000 cycles under the force of 67N (ASME A112.18.1/
CSA B125.1)
5,000 cycles under the force of 5N ( EN1113)
Approvals: EN1113, WRAS, ACS |

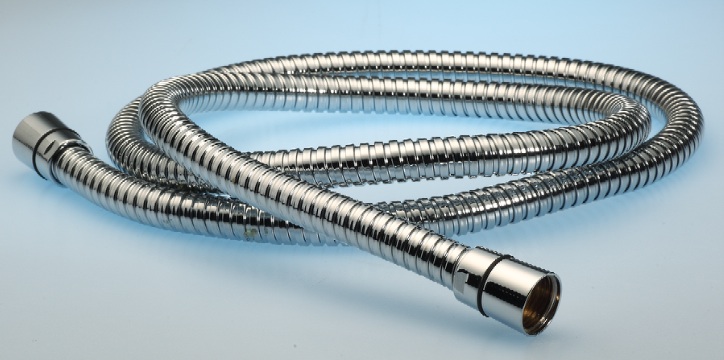

Move the mouse on the picture to get clearer image |
|
