Special fabrication procedure guarantees stronger pull strength and longer life time.

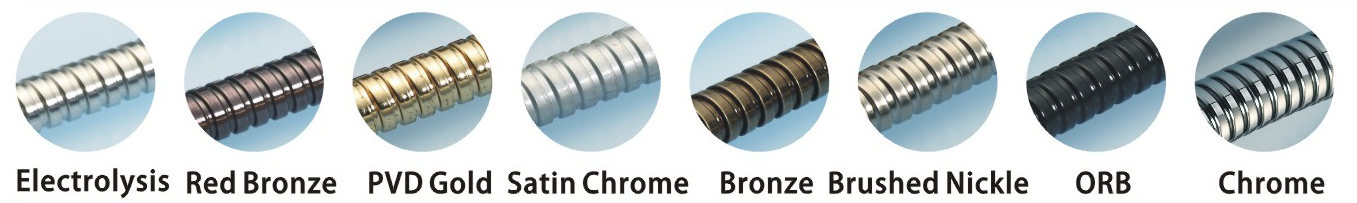

Out jacket: Stainless steel or brass;
Double-lock;
Dimension(ID/OD): 7MM / 14MM; 7.5MM / 14MM; 10MM / 16MM; 11MM / 16MM
Inner hose: PVC(NSF, WRAS, KTW, ACS, UPC, CSA, WATERMARK)
EPDM(WRAS, ACS, WATERMARK)
Working pressure: 0 – 5 bar
Working temperature: ≤ 70℃
Tensile strength: ≥ 700N
Flow rate: ≥ 25.2L/Min at 3 bar
Thermal shock test: 600 cycles with flow rate of 6L/Min (EN1113)
Life cycle test: 15,000 cycles under the force of 67N (ASME A112.18.1/ CSA B125.1)
10,000 cycles under the force of 5N ( EN1113)
Approvals: EN1113, WRAS, ACS
This hose can be customized to meet UPC, CSA,KTW-C,W270,WATERMARK and other international certifications.
|
